11″ Single Row LED Light Bar (Spot Beam)


Make an enquiry

    Interested in purchasing this product? Enter your details here and a CBQ representative will contact you.

    The compact size and light weight of this light bar makes it perfect for lighter-duty vehicles that require some extra illumination for night-time highway or off-road driving. It is set up as a spot beam to give maximum forward beam throw.

    This LED lighting product has an ingress protection rating of IP68 The maximum light output of this LED lighting product is 1800 lumens This LED light produces 1 lux at 310m distance

    Key features

    • Oversized heatsink: helps LEDs remain cooler and brighter
    • Rubber seal: custom molded seal helps ensures 100% waterproofness
    • Ultimate reliability: Design ensures that damage to part of the light will not cause total failure
    • Long useful life: 100+ lumen per watt LEDs with over 50,000 hours useful life
    • IP68 ingress rating: protected against complete, continuous submersion in water
    • Uses less power: Patented hybrid reflector lens achieves 94%+ efficiency
    • Shatterproof lens: Lexan polycarbonate lens is unbreakable, abrasion-resistant and optically clear
    • Positively sealed light enclosure: bolts placed every 10cm for a positively sealed enclosure.


    Materials Aircraft aluminium housing
    Shatterproof Lexan lens
    LED Manufacturer Genuine OSRAM®
    LED Number 6 x 3w
    Output 1,800 lumens
    Lux 1 lux @ 310m
    Beam distance 620m
    Ingress Protection IP68
    Weight 1.1kg
    Working Voltage 11 – 38v DC
    Current 12v/1.5A – 24v/0.75A
    Colour Temp 5500-6000K
    Lifespan 50,000 hours

    Pack Contents

    1x 18w LED light bar

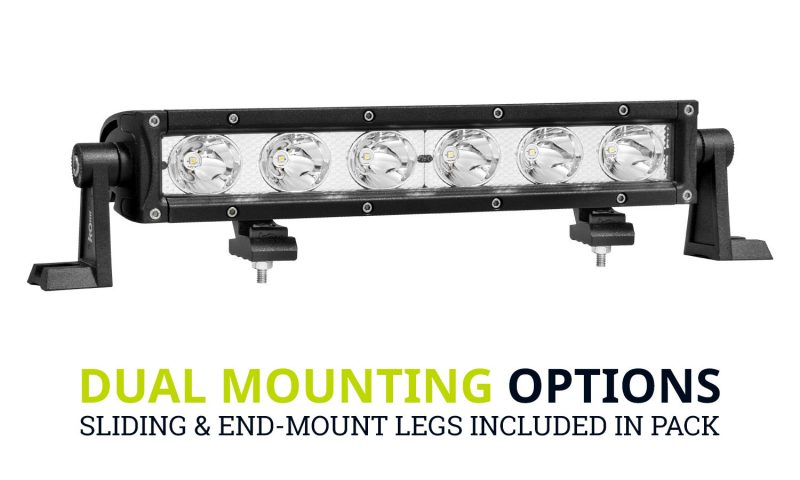

    2x side mounting brackets
    2x leg mounting brackets
    1x male & female Deutsch plug connectors


    Click for larger image
